Bevel Gears Manufacturing

CYLINDRICAL GEAR MANUFACUTRING


BEVEL GEAR MANUFACUTRING

Bevel gear workshop was founded at 1996, who is the first one importing USA UMAC technology for hypoid gears, equipped with 120 staff, successfully obtained total 17 inventions and 3 Patents. We have adopted CNC machine tools along the whole production line including lathing, grinding, lapping, inspection. This allow us to assure interchangeability of spiral bevel gears and meet requirements in different applications.

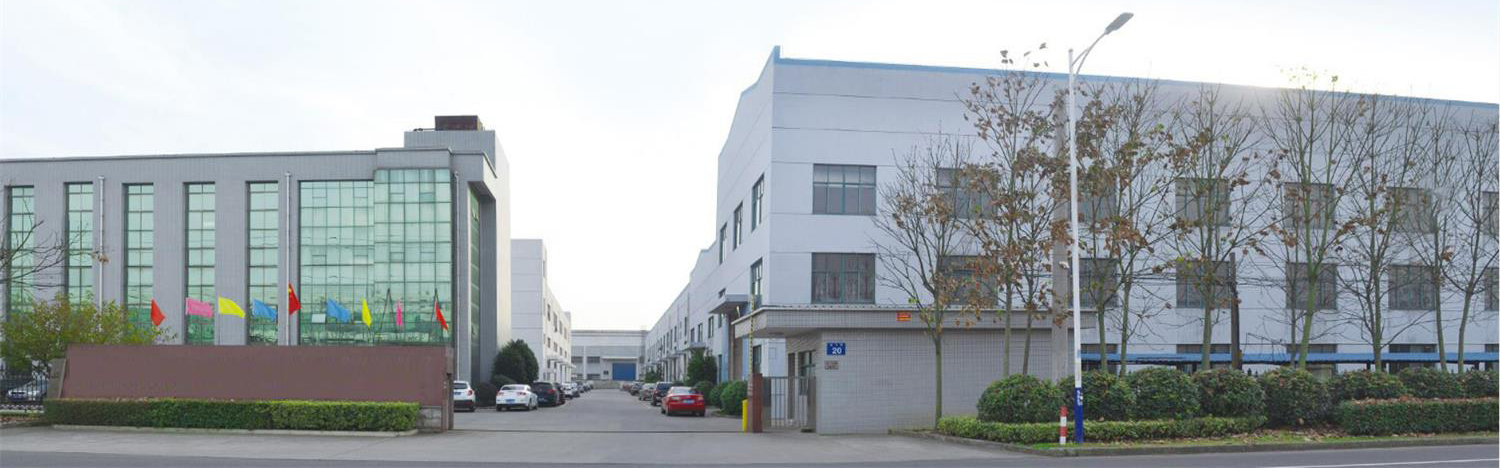

Glance Of Bevel Gear Workshop: 10000㎡

Module: 0.5-35, Dimeter: 20-1600, Accuracy: ISO5-8

Main Production Equipment

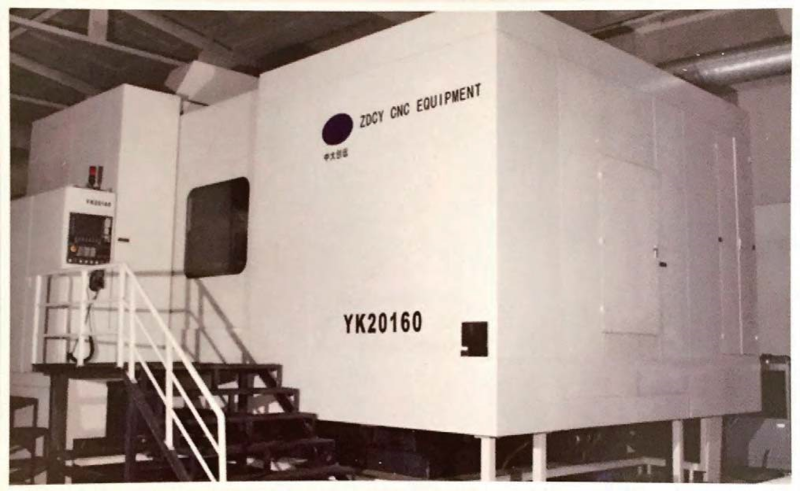

ZDCY CNC Profile Grinding Machine for spiral bevel gears

Diameter: 1600mm

Module: 30

Precision grade :GB5

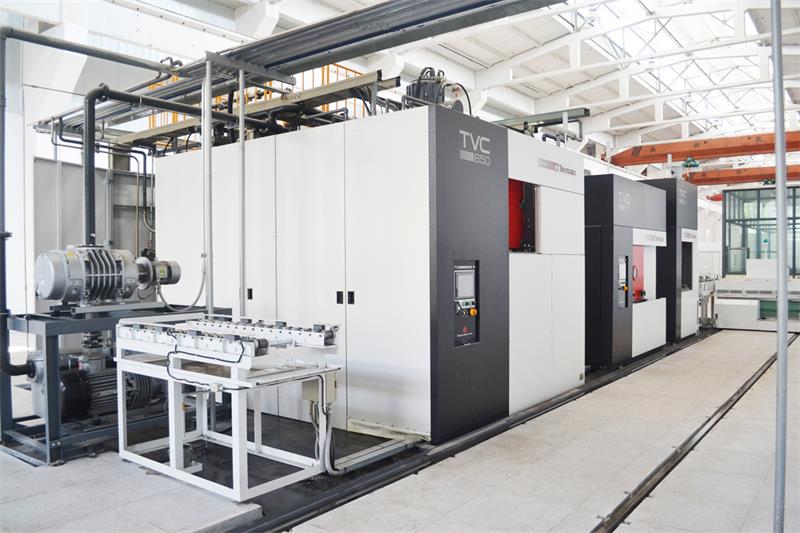

Heat Treat Equipment

We used Japan Takasago vacuum carburizing, which makes the heat treat depth and hardness be uniform and with bright surfaces, greatly increase gears life and decrease noises.
